Far Creative offers complete HDPE pipe production line solutions for water supply, gas, drainage, irrigation and industrial applications. From small diameter pipes to large diameter pipes, we provide turn-key plastic pipe extrusion machine systems tailored to your specific requirements.
Key Advantages
Wide Diameter Range: 16mm-1600mm HDPE pipes
Customized Solutions: Tailored to your production capacity
Complete Line: From extrusion to stacking
High Efficiency: Advanced technology for maximum output
Turn-Key Service: Installation, training and support

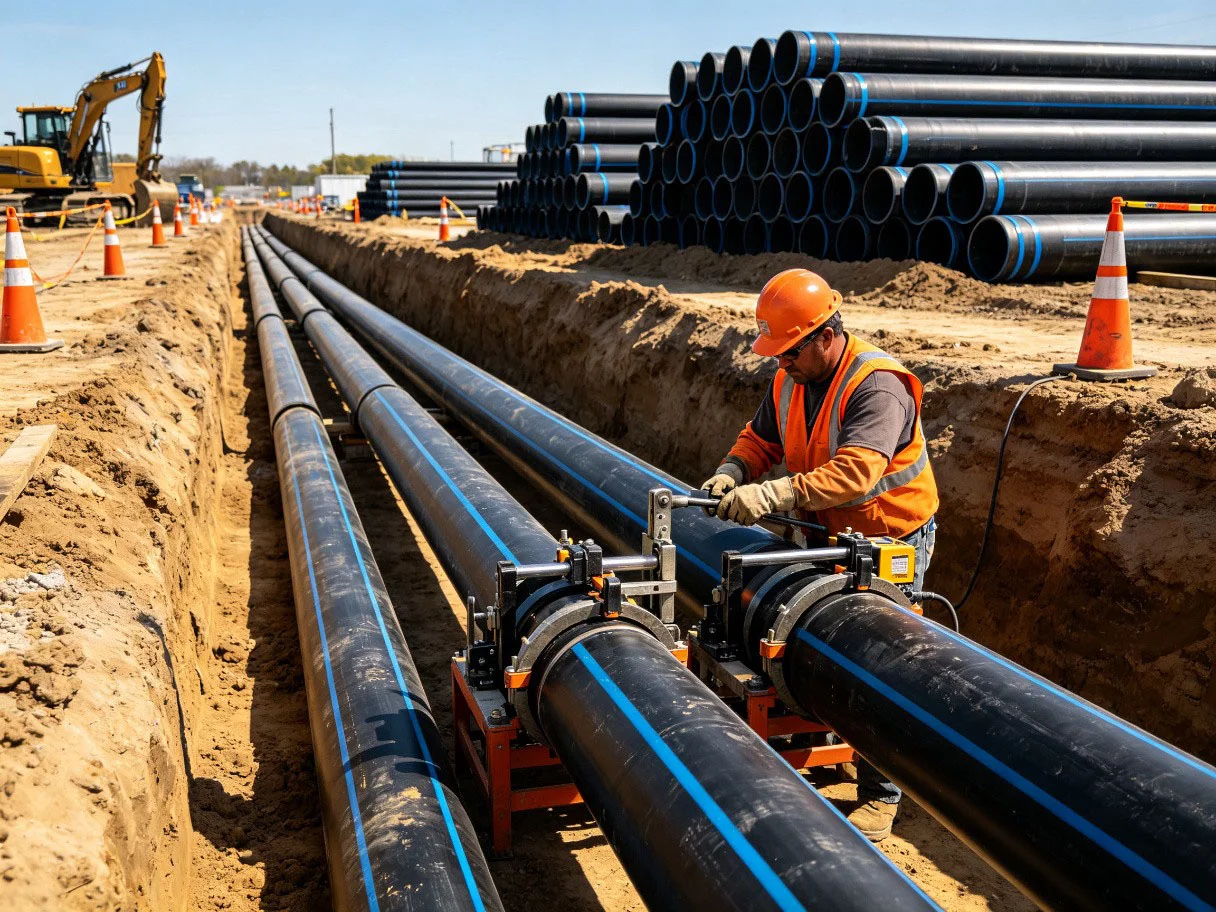

HDPE pipes are ideal for municipal water supply, drainage and sewage systems. Their corrosion resistance and long service life make them the preferred choice for city infrastructure projects.
Main Applications
Water supply pipe
Drainage pipe
Sewage pipe
Fire protection pipe
Trenchless installation
Advantages
Corrosion resistant
Lightweight
Easy installation
Long service life
Recommended Pipe Diameter: 16mm-1600mm
Recommended Production Line: Small to Heavy Duty HDPE Pipe Extrusion Line

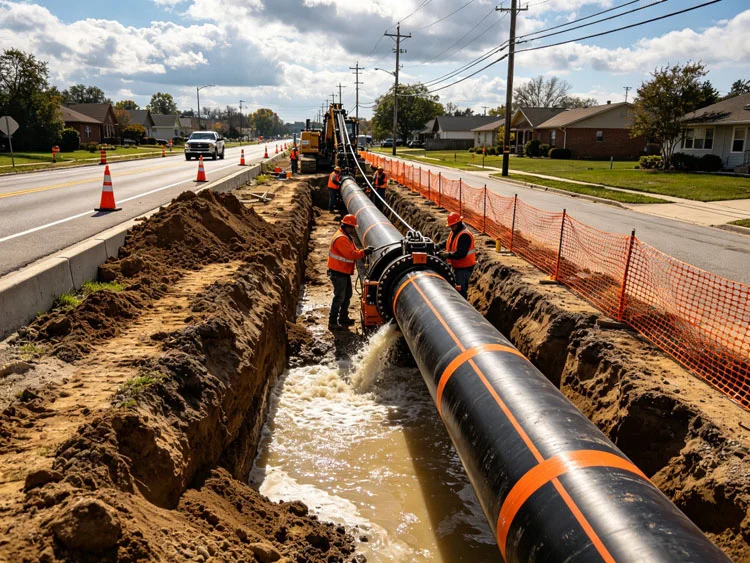

Industrial applications require durable pipes that can handle chemicals, high pressure and harsh environments. HDPE pipes excel in chemical transportation, mining and power plant cooling systems.
Main Applications
Chemical transportation
Mining slurry pipe
Gas pipeline
Power plant cooling system
Advantages
Chemical resistant
High pressure rating
Abrasion resistant
UV stabilized
Recommended Pipe Diameter: 75mm-630mm
Recommended Production Line: Medium to Large Diameter HDPE Pipe Production Line

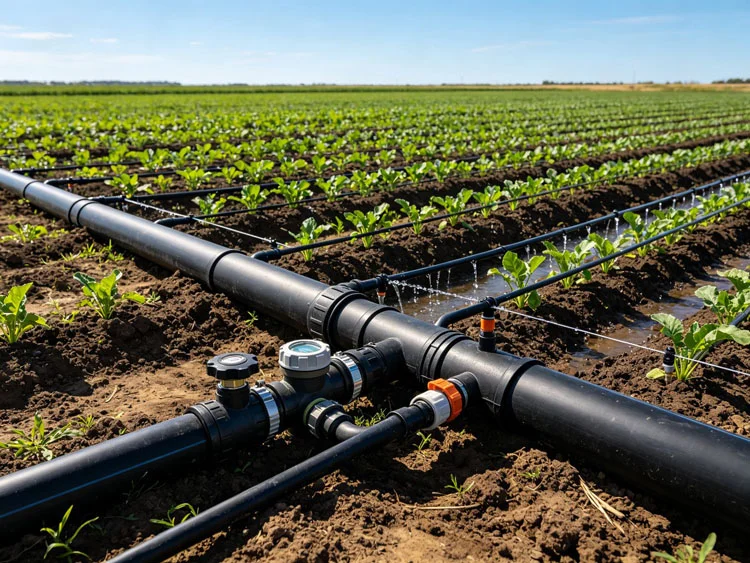

HDPE pipes are the backbone of modern agriculture, providing efficient irrigation systems for farms and plantations. Their flexibility and durability make them perfect for water delivery across fields.
Main Applications
Irrigation system
Water delivery
Drainage system
Drip irrigation
Advantages
Flexible
Lightweight
UV resistant
Easy to install
Recommended Pipe Diameter: 16mm-250mm
Recommended Production Line: Small to Medium Capacity HDPE Pipe Extrusion Line

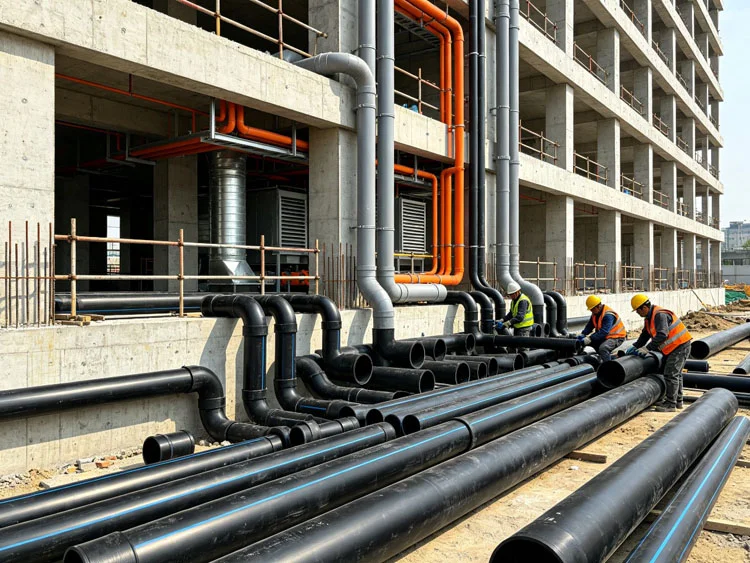

HDPE pipes play a crucial role in modern construction for building water supply, drainage and cable protection systems. They are easy to install and require minimal maintenance.
Main Applications
Building water supply
Drainage
Cable protection
Ventilation systems
Advantages
Easy installation
Lightweight
Sound insulation
Low maintenance
Recommended Pipe Diameter: 16mm-250mm
Recommended Production Line: Small to Medium Capacity HDPE Pipe Manufacturing Line

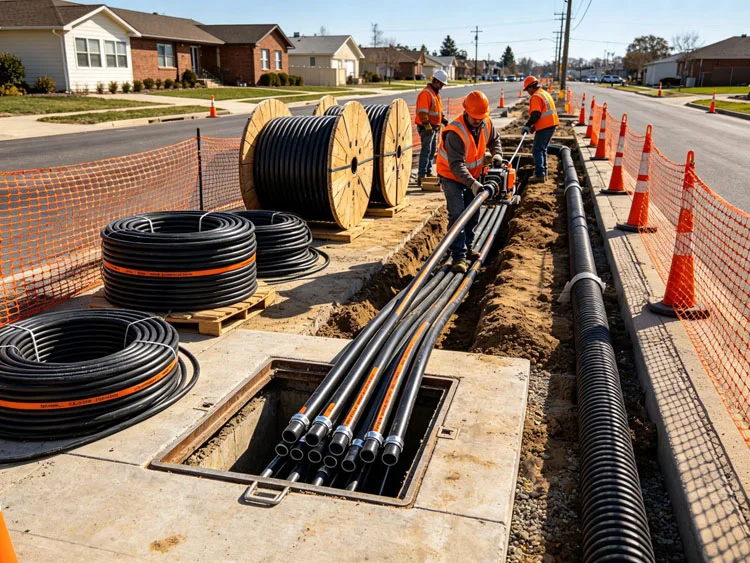

HDPE pipes provide excellent protection for fiber optic cables and electrical conduits. Their high impact resistance and corrosion-free nature ensure reliable cable protection.
Main Applications
Fiber optic protection pipe
Cable conduit
Telecommunication ducts
Power cable protection
Advantages
High impact resistance
Corrosion free
Easy to install
Low friction
Recommended Pipe Diameter: 16mm-160mm
Recommended Production Line: Small Diameter HDPE Pipe Production Line

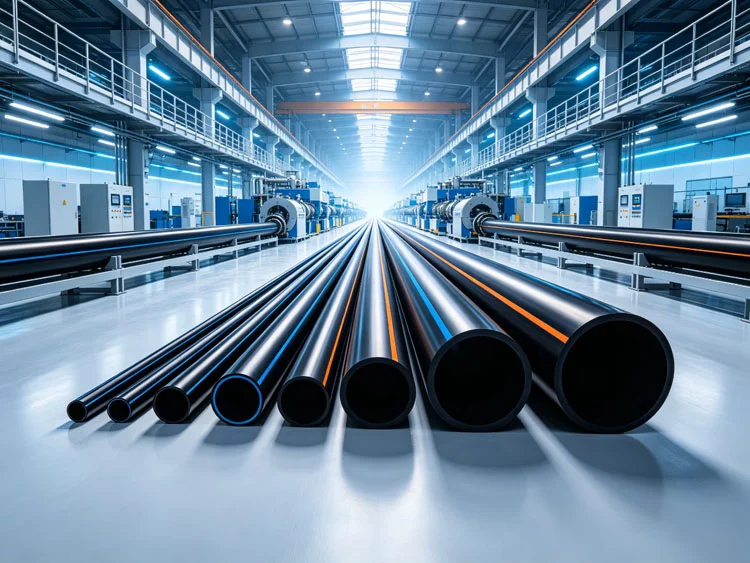

Every project is unique. We provide customized HDPE pipe extrusion solutions based on your specific requirements including pipe diameter, production capacity, raw material and factory conditions.
Customization Options
Pipe diameter range
Production capacity
Wall thickness
Raw material type
Factory space
Local power supply
Advantages
Tailored solutions
Maximized efficiency
Cost effective
Future expansion
Recommended Pipe Diameter: 16mm-1600mm
Recommended Production Line: Custom HDPE Pipe Extrusion Line
Choosing the right HDPE pipe production line depends on several key factors. Consider your pipe diameter requirements, application, production capacity and future expansion plans when selecting a plastic pipe extrusion machine.
How to Choose
Pipe Diameter: Determine the range of pipe sizes you need to produce
Pipe Application: Water, gas, irrigation, industrial or cable protection
Wall Thickness: Standard or customized thickness requirements
Production Capacity: Required output per hour/day
Future Expansion: Consider potential growth in production
HDPE Pipe Line Comparison Table
Pipe Diameter
Application
Recommended Line
Typical Output
16-63mm
Irrigation, Cable Protection
Small HDPE Pipe Production Line
120-200 kg/h
75-110mm
Water Supply, Gas

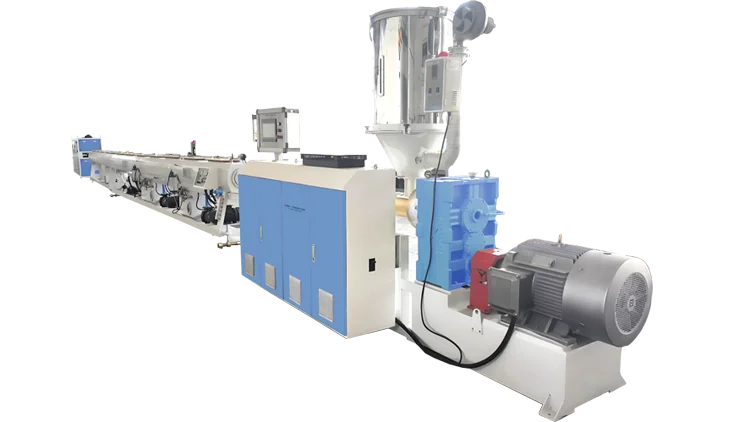

Medium HDPE Pipe Extrusion Line
180-250 kg/h
110-250mm
Municipal Water, Industrial

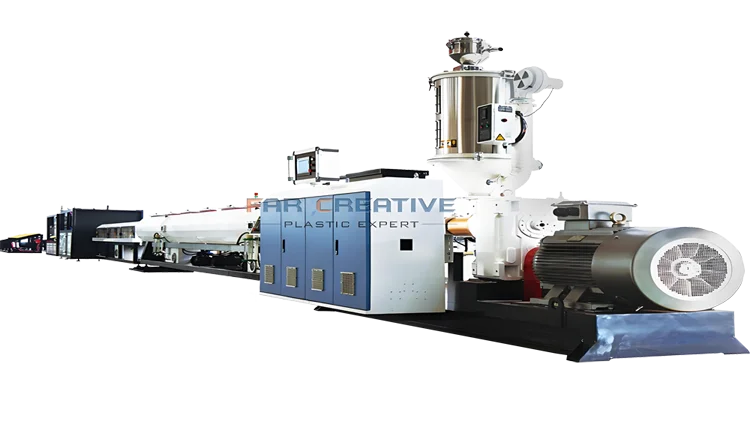

Medium Capacity HDPE Pipe Line
350-450 kg/h
250-630mm
Engineering Pipeline
Large Diameter HDPE Pipe Manufacturing Line
450-900 kg/h
630-1600mm
Water Transmission

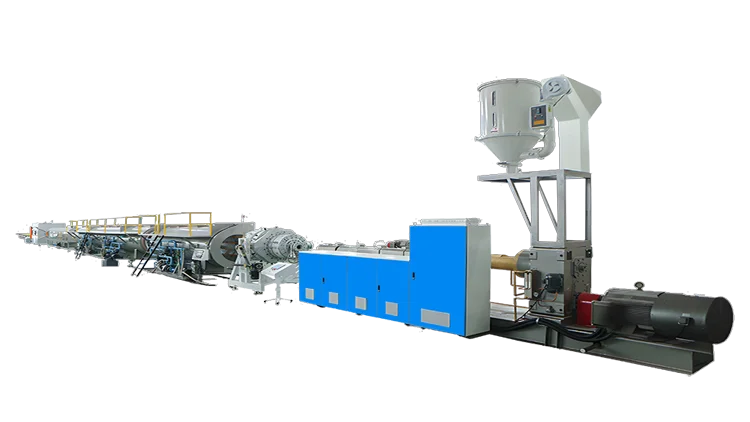

Extra Large Diameter HDPE Pipe Line
900-2000 kg/h
Production Line Solutions
Small 16-63mm
Medium 20-110mm
Mid-Capacity 110-315mm
Large 315-630mm
Extra Large 630-1200mm

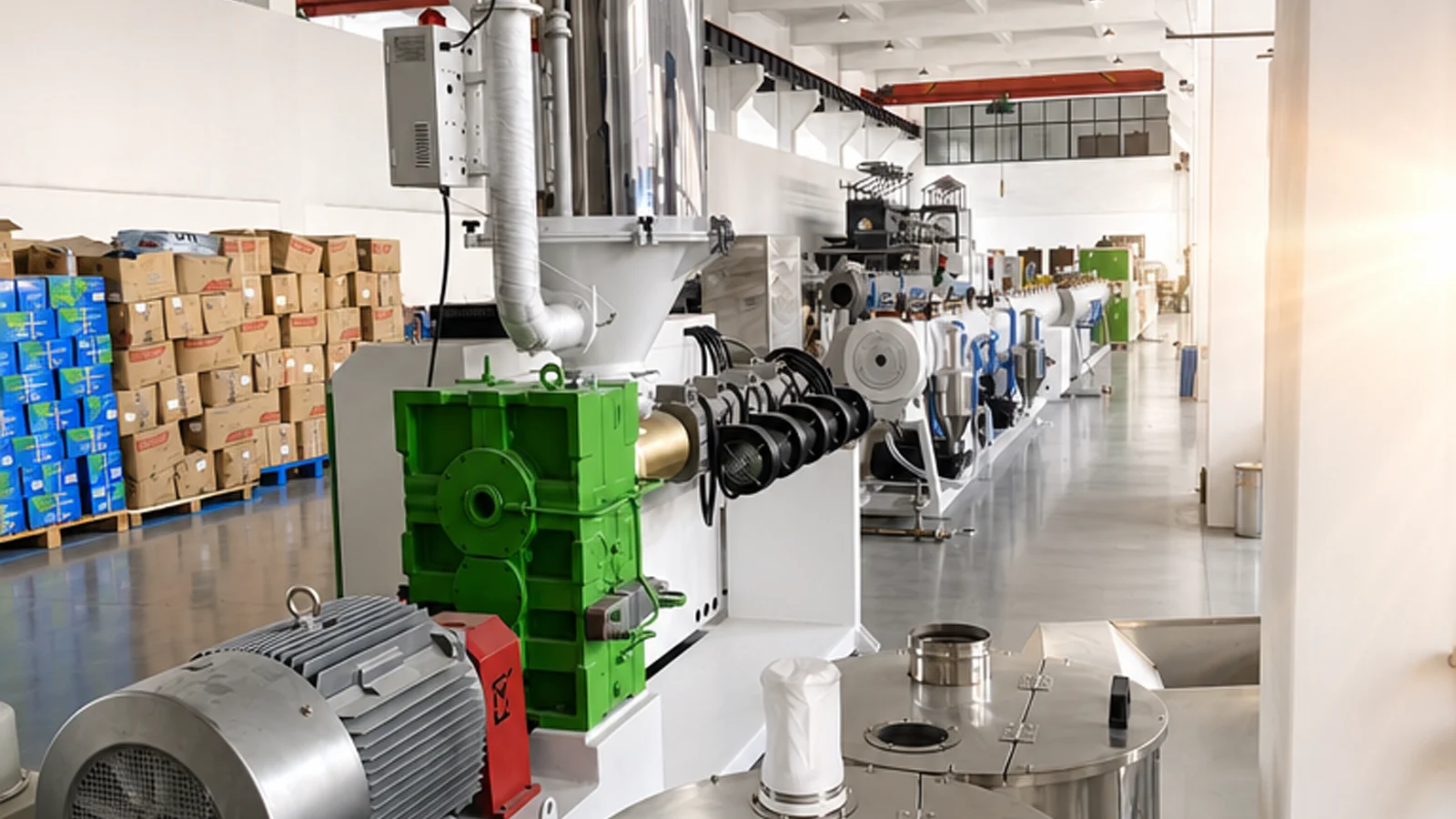

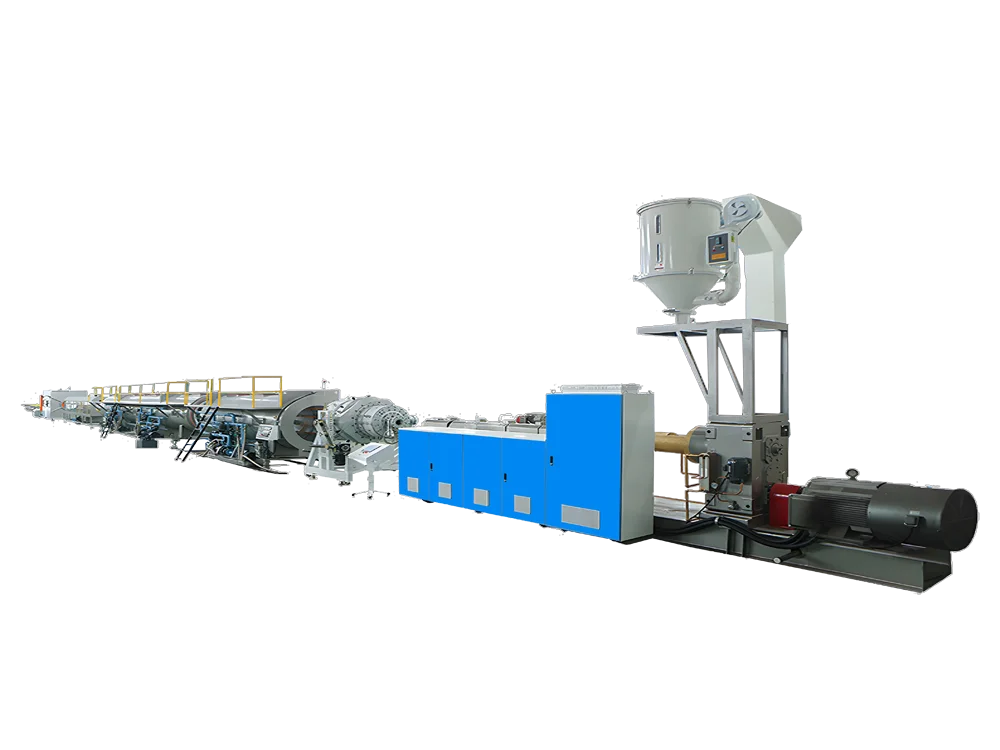

Small Diameter HDPE Pipe Production Line (16–63 mm)

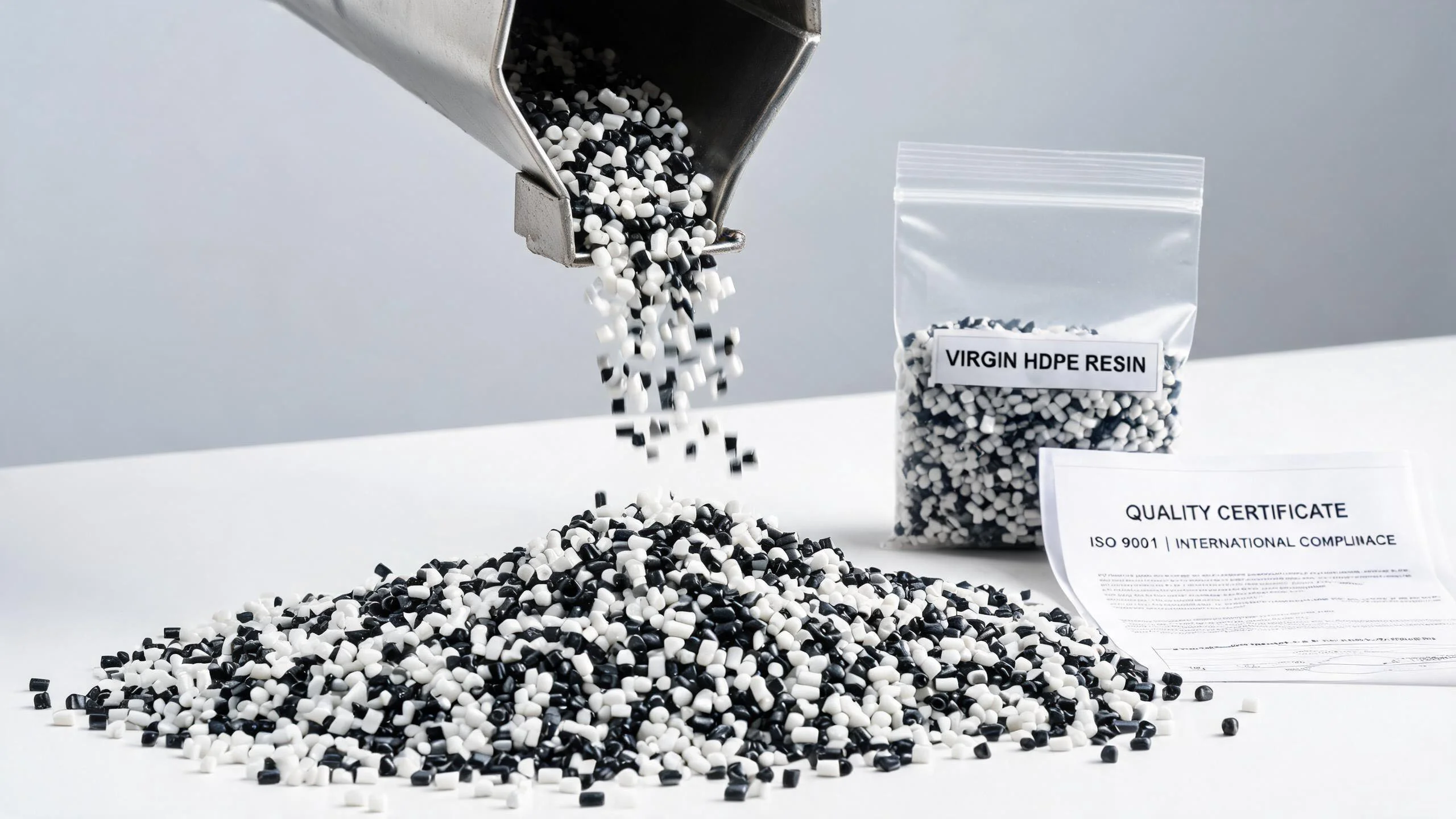

High quality HDPE resin is prepared and dried before entering the extrusion process. Virgin HDPE pellets ensure the best mechanical properties.
Key Features
Virgin HDPE resin
High purity material
Consistent quality
Meets international standards

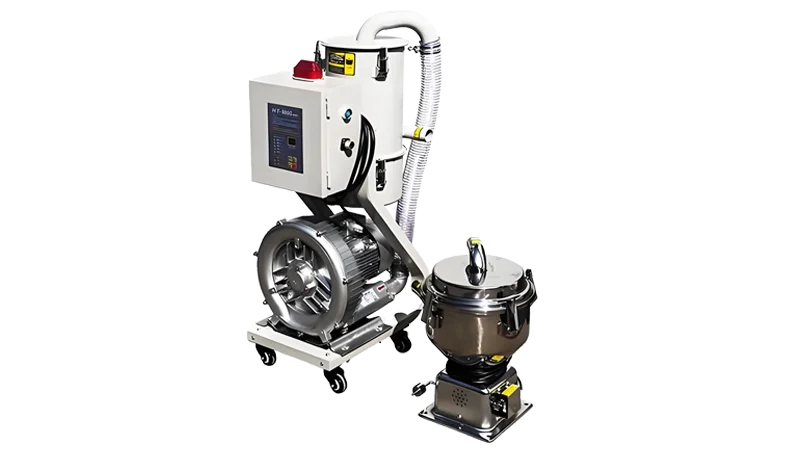

Automatic Loader
The automatic loader feeds HDPE pellets into the extruder hopper, ensuring continuous material supply for uninterrupted production.
Key Features
Automatic material feeding
Continuous supply
Easy operation
Low maintenance

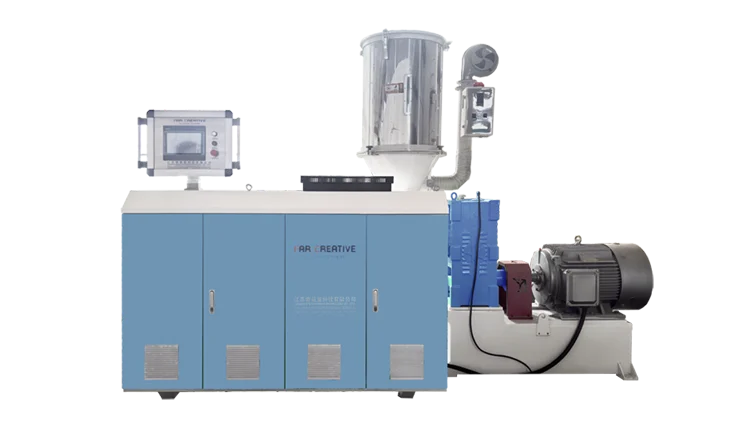

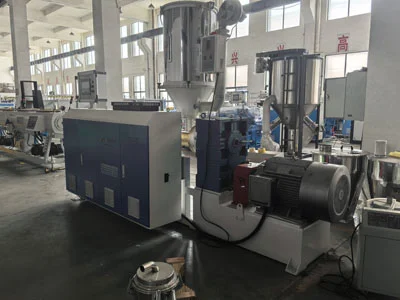

Extruder
The single screw extruder melts and homogenizes the HDPE resin, preparing it for pipe formation. Precise temperature control ensures optimal melt quality.
Key Features
Single screw design
Precise temperature control
High output
Energy efficient

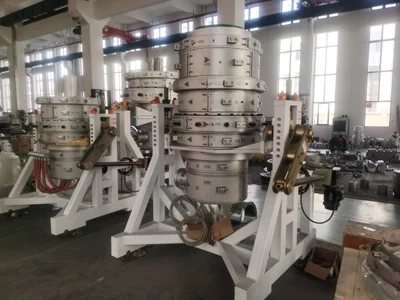

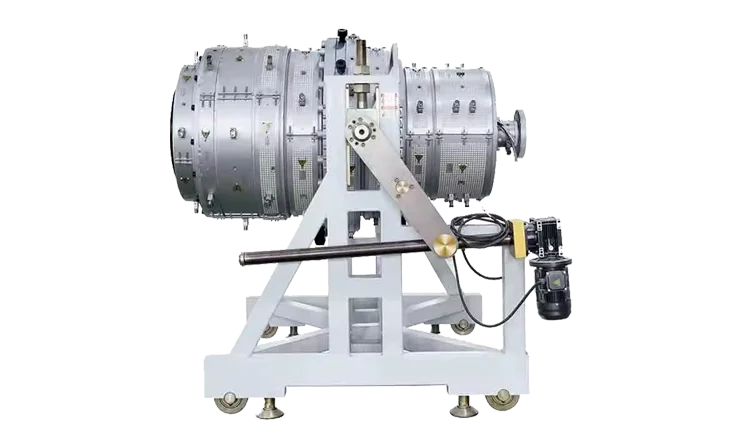

Die Head
The spiral mandrel die head shapes the molten HDPE into pipe form. Advanced design ensures uniform wall thickness and smooth inner surface.
Key Features
Spiral mandrel design
Uniform wall thickness
Smooth inner surface
Precision machining

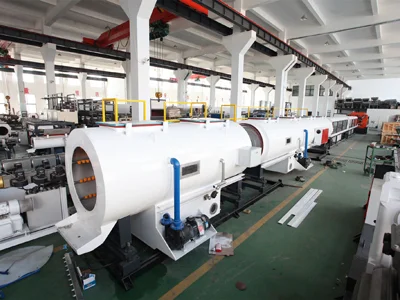

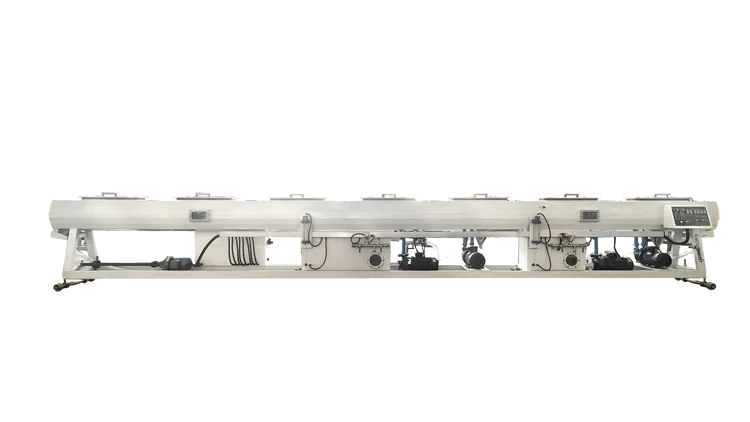

Vacuum Calibration
The vacuum calibration tank precisely controls the pipe outer diameter and roundness. Vacuum suction ensures dimensional accuracy.
Key Features
Precision calibration
Vacuum suction
Dimensional accuracy
Stable operation

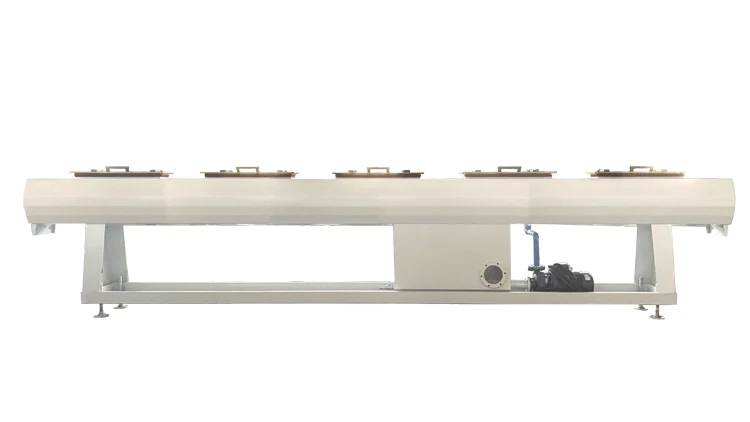

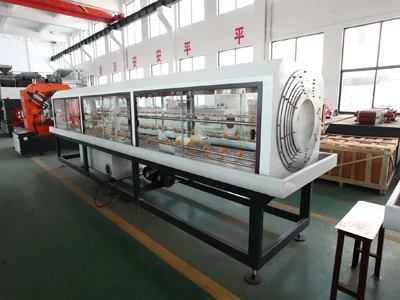

Cooling
Spray cooling system rapidly cools the pipe, solidifying its shape and preventing deformation. Water circulation ensures efficient cooling.
Key Features
Spray cooling system
Rapid cooling
Water circulation
Energy efficient

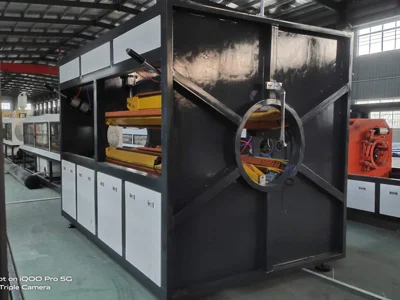

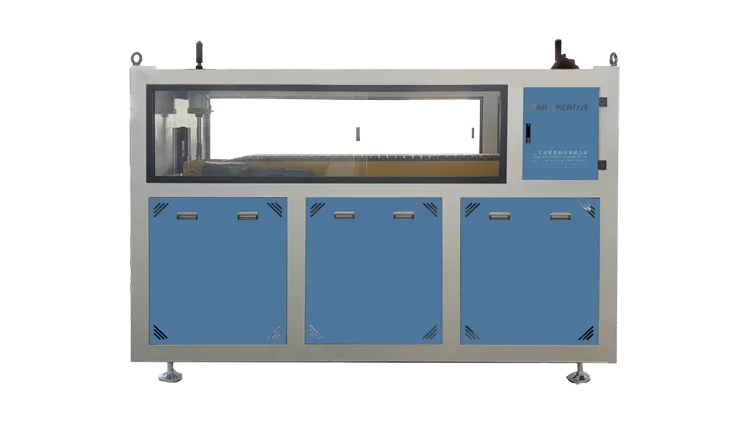

Haul-off
The haul-off machine pulls the pipe at a constant speed, ensuring uniform wall thickness. Precision control maintains consistent production.
Key Features
Constant speed pulling
Uniform wall thickness
Precision control
Stable operation

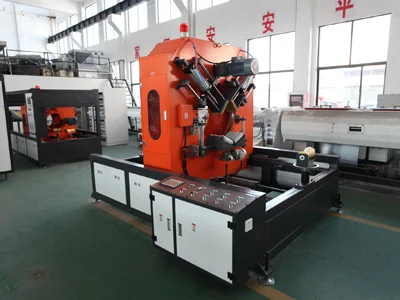

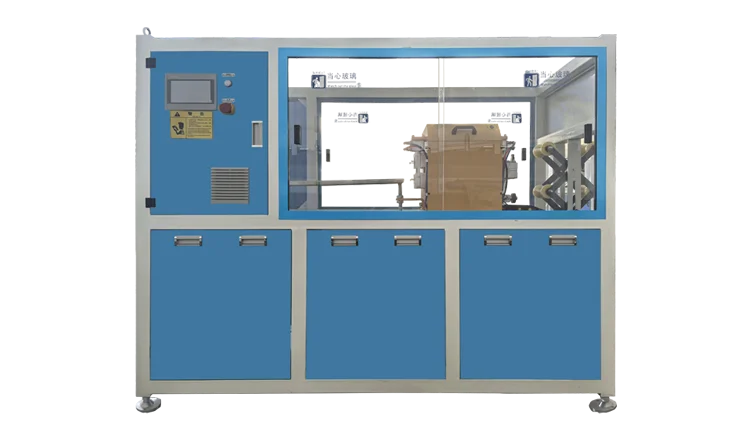

Cutter
Precision cutting machine cuts the pipe to specified lengths. Chipless cutting ensures clean edges without waste.
Key Features
Precision cutting
Chipless design
Clean edges
High efficiency

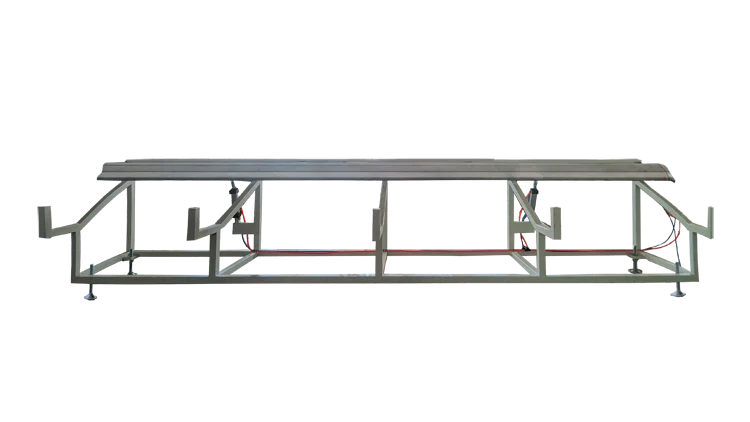

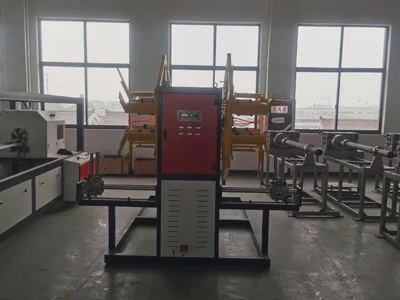

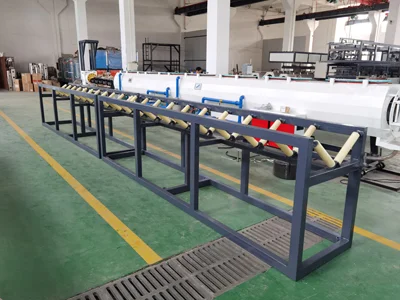

Coiler / Stacker
Small diameter pipes are automatically coiled, while large diameter pipes are stacked. Automated handling ensures efficient packaging.
Key Features
Automatic coiling
Automated stacking
Efficient handling
Space saving

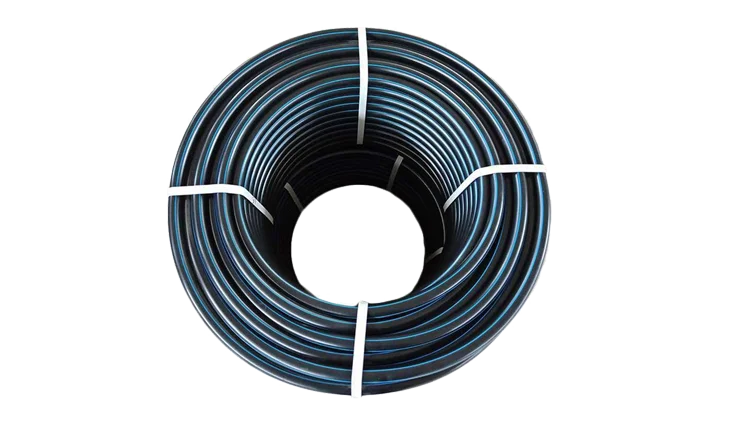

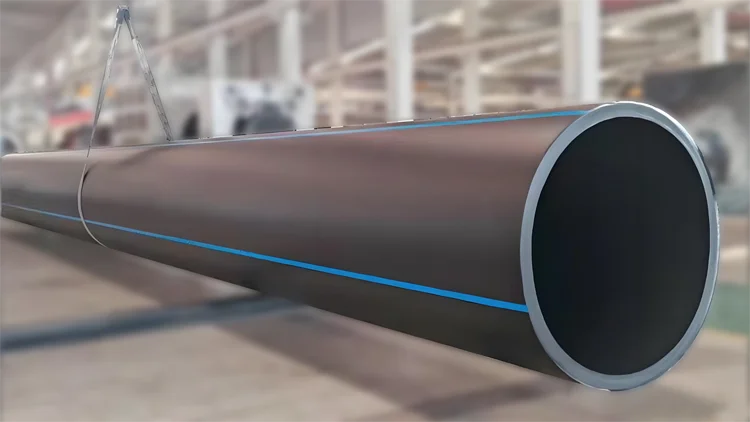

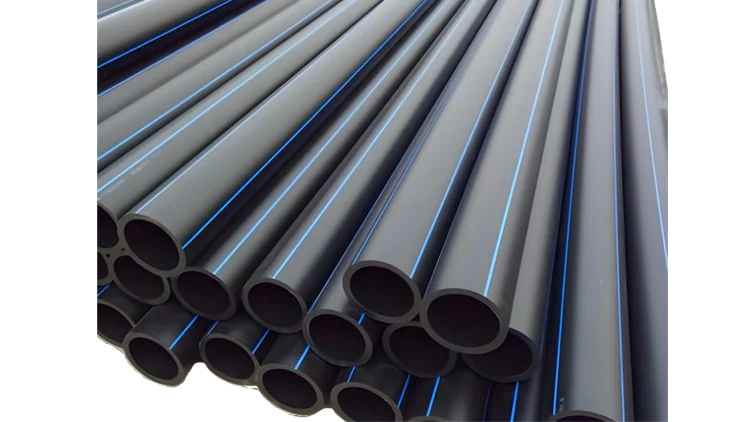

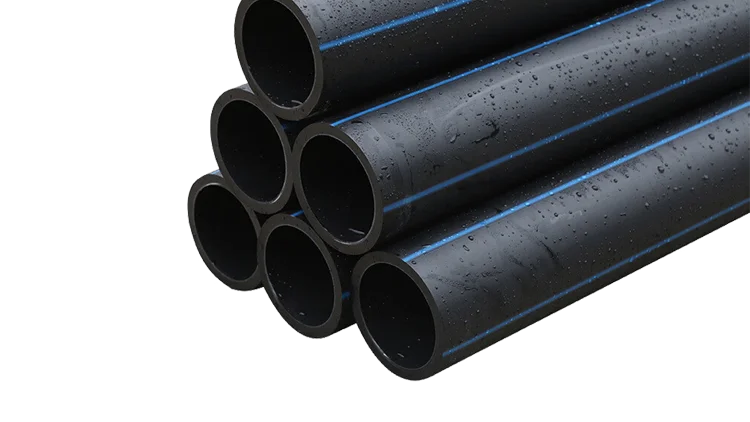

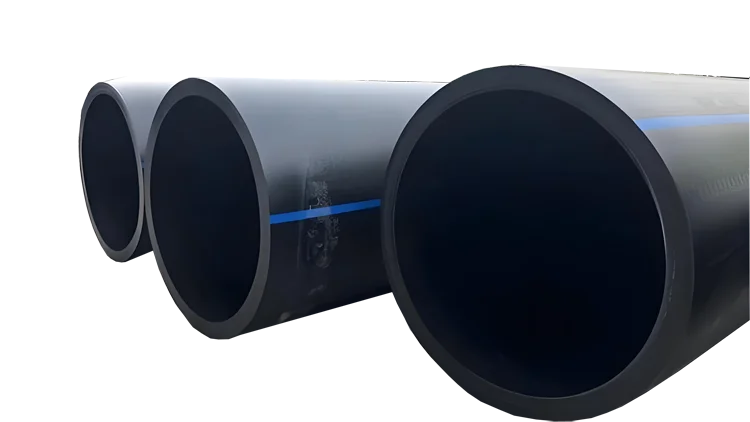

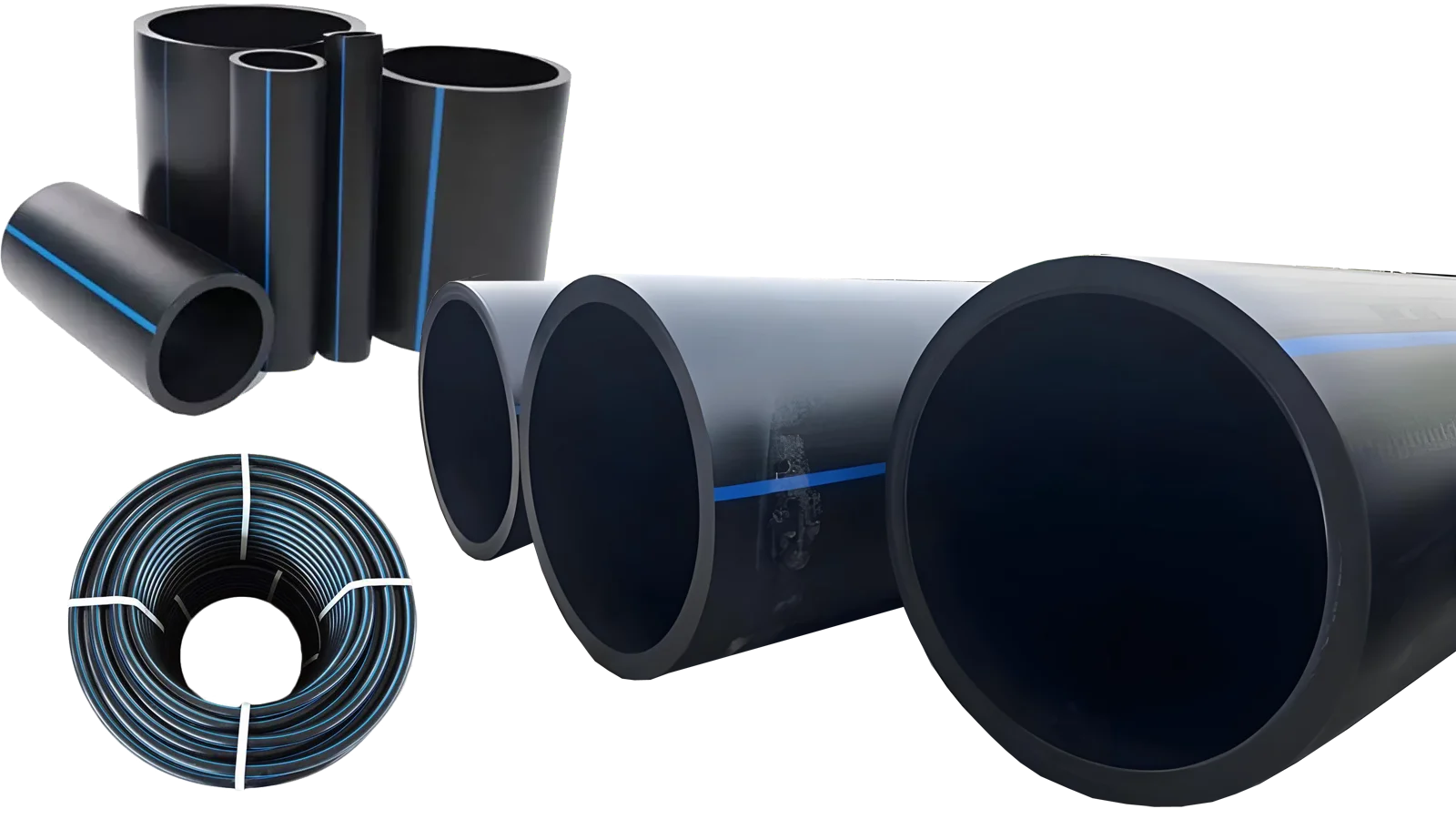

Finished Pipe
Quality inspection is performed on finished pipes before packaging. Each pipe meets international standards and customer specifications.
Quality Assurance
Visual inspection
Dimensional check
Pressure testing
Documentation
Factory Planning Guide
Proper factory planning is essential for efficient HDPE pipe production. We provide comprehensive engineering support to help you optimize your workshop layout.
Workshop Requirements
Workshop Size: Depends on production line size (typically 30-100m long)
Installed Power: 50-800 kW depending on line configuration
Cooling Water: 10-100 m³/h circulation system
Air Requirement: 0.6-0.8 MPa compressed air
Operators: 2-6 workers per shift

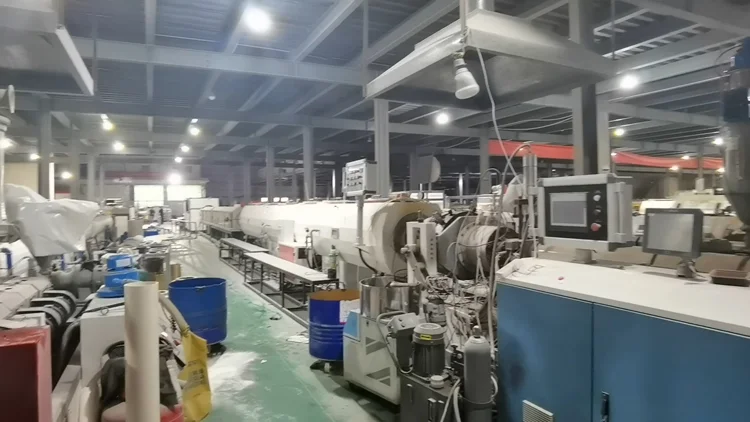

Factory Layout
Engineering Support
Factory layout design
Power supply planning
Cooling water system design
Installation supervision
Operator training
After-sales support
Machine Gallery
Video Gallery

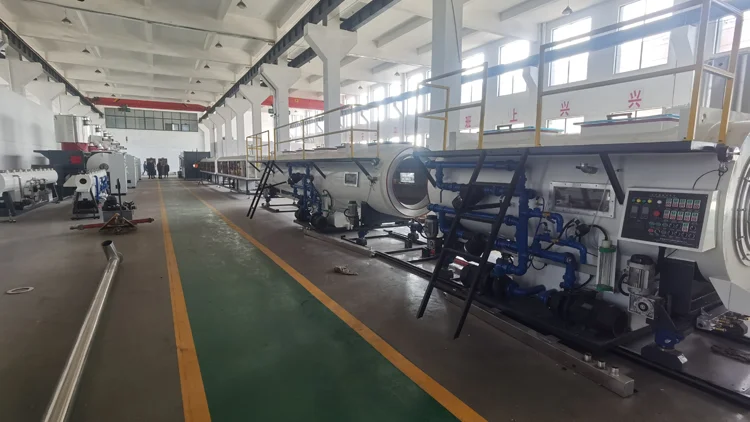

315-630mm HDPE Pipe Production Line
8-Claw Haul-off Machine
75-250mm HDPE Pipe Production Line
HDPE Pipe Factory Project
FAQ
1. What diameter HDPE pipes can your machine produce?
Far Creative provides HDPE pipe extrusion lines from 16mm to 1600mm. We offer complete solutions for different pipe diameters including small diameter (16-63mm), medium diameter (75-250mm), large diameter (250-630mm) and extra large diameter (630-1600mm).
2. What is the production capacity of your lines?
Production capacity varies based on pipe diameter and configuration. Small diameter lines (16-63mm) typically produce 120-250kg/h, medium lines (75-250mm) produce 300-800kg/h, and large diameter lines (250-1600mm) produce 500-2000kg/h.
3. What materials can be used with your machines?
Our HDPE pipe production lines are designed for virgin HDPE resin. We can also accommodate recycled HDPE, MDPE, and other thermoplastic materials with appropriate modifications.
4. Do you provide installation services?
Yes, we provide complete Turn-Key service including equipment installation, commissioning, operator training and after-sales support. Our technical team will guide you through the entire process.
5. What are the lead times for production lines?
Standard production lines typically have a lead time of 30-45 days. Customized solutions may require 45-60 days depending on complexity and customization requirements.
6. What certifications do your machines have?
Our machines comply with CE and ISO 9001 standards. We also provide international quality certifications for our products. Custom certifications can be arranged upon request.
7. What is the warranty period?
We provide a 12-month warranty on all equipment. Extended warranty options are available for additional peace of mind. Our after-sales team is available 24/7 for technical support.
8. Can you provide customized solutions?
Yes, we specialize in custom solutions. Our engineering team works closely with clients to design production lines that meet specific requirements, including pipe diameter ranges, output capacity, and automation levels.
9. What after-sales support do you provide?
We provide comprehensive after-sales support including on-site troubleshooting, remote technical support, spare parts supply, and periodic maintenance. Our team ensures your production runs smoothly.
10. Do you offer financing options?
We offer flexible financing options including installment plans and leasing arrangements. Our team can help you find the best payment solution for your budget and business needs.
